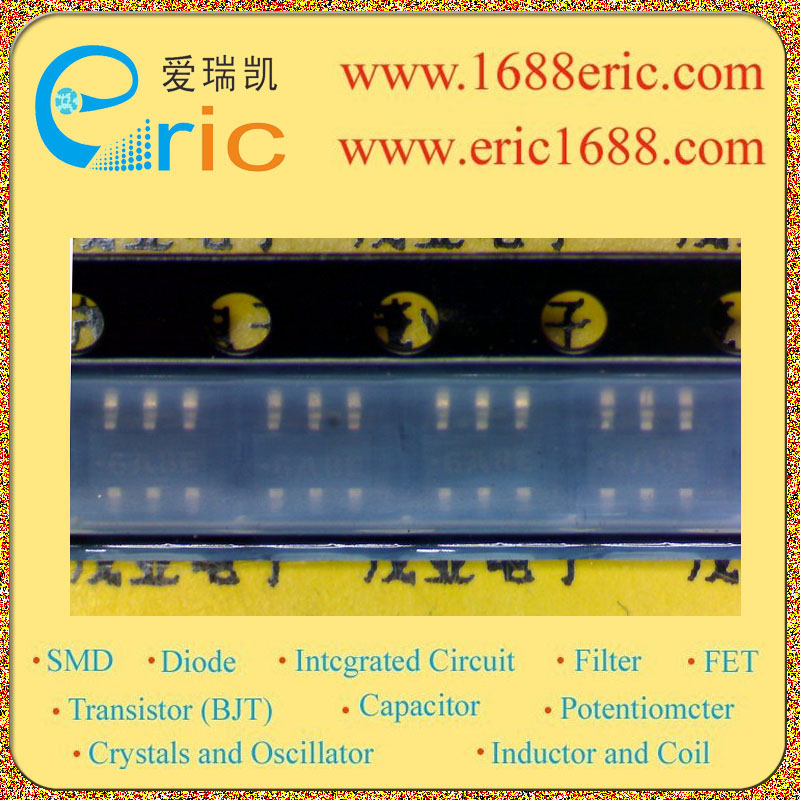

MMQA6V8T1 6A8 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
4.3V |
| 反向击穿电压VBR
Breakdown Voltage |
6.8V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
24W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.225W/225mW |
| Description & Applications |
Specification Features ? SC?74 Package Allows Four Separate Unidirectional Configurations ? Peak Power ? Min. 24 W @ 1.0 ms (Unidirectional), ? Peak Power ? Min. 150 W @ 20 s (Unidirectional), ? Maximum Clamping Voltage @ Peak Pulse Current ? Low Leakage < 2.0 A ? ESD Rating of Class N (exceeding 16 kV) per the Human Body Model ? Pb?Free Packages are Available |
| 描述与应用 |
规格特性 ?SC-74包装允许四个独立的单向配置 ?峰值功率 - 最小 24 W@1.0毫秒（单向， ?峰值功率 - 最小 150 W @20（单向， ?最大钳位电压@峰值脉冲电流 ?低漏<2.0？ ?ESD额定值N类（超过16千伏每 人体模型 ?无铅包可用 |
