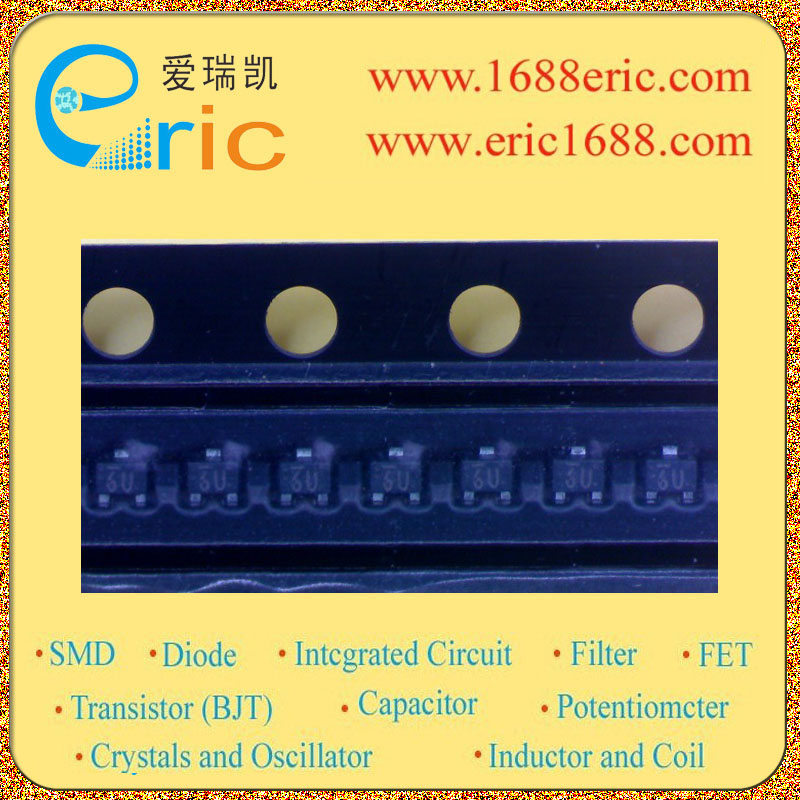

2SK3938OOL 6U 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
30V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
12V |
| 最大漏极电流Id
Drain Current |
100mA/0.1A |
| 源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
0.05Ω/Ohm @10mA,4V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
0.5-1.5V |
| 耗散功率Pd
Power Dissipation |
100mW/0.1W |
| Description & Applications |
Silicon MOSFETs (Small Signal) Silicon N-channel MOSFET For switching circuits Features N-CHANNEL MOS FET FOR HIGH-SPEED SWITCHING High-speed switching SSS Mini type package, allowing downsizing of the equipment and SSSMini type package, allowing downsizing of the equipment and automatic insertion through the tape packing |
| 描述与应用 |
硅MOSFET（小信号） 硅N沟道MOSFET开关电路 特性 N沟道MOS FET高速开关 高速开关 SSS迷你型包装，允许缩编的设备和SSSMini型封装，允许精简的设备和通过自动插入磁带包装 |
