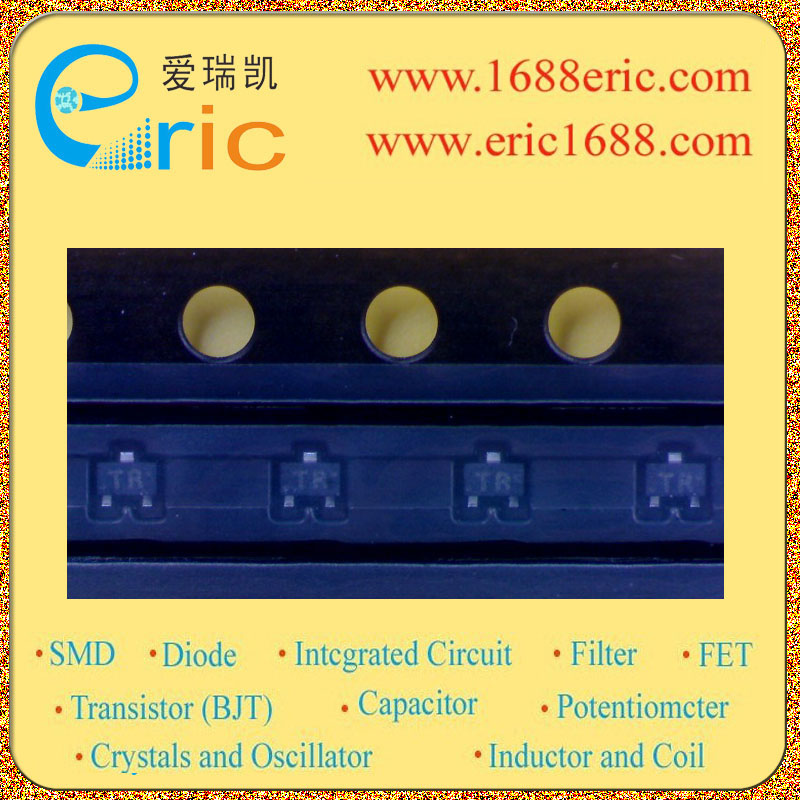

MT3S11T TR 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
13V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
6V |
| 集电极连续输出电流IC
Collector Current(IC) |
40mA |
| 截止频率fT
Transtion Frequency(fT) |
4Ghz~6Ghz |
| 直流电流增益hFE
DC Current Gain(hFE) |
100~160 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
|
| Description & Applications |
VHF~UHF Band Low-Noise Amplifier Applications VHF~UHF Band Oscillator Applications Superior performance in oscillator applications. ? Superior noise characteristics : NF = 2.4 dB, |S21e| 2 = 3.5 dB (f = 2 GHz) |
| 描述与应用 |
?VHF?UHF频段低噪声放大器应用 ?VHF?UHF频带振荡器/缓冲器应用 振荡器应用中的卓越性能。 ?高级噪声特性 ：NF= 2.4分贝，S21E| 2 =3.5分贝（F =2吉赫） |
