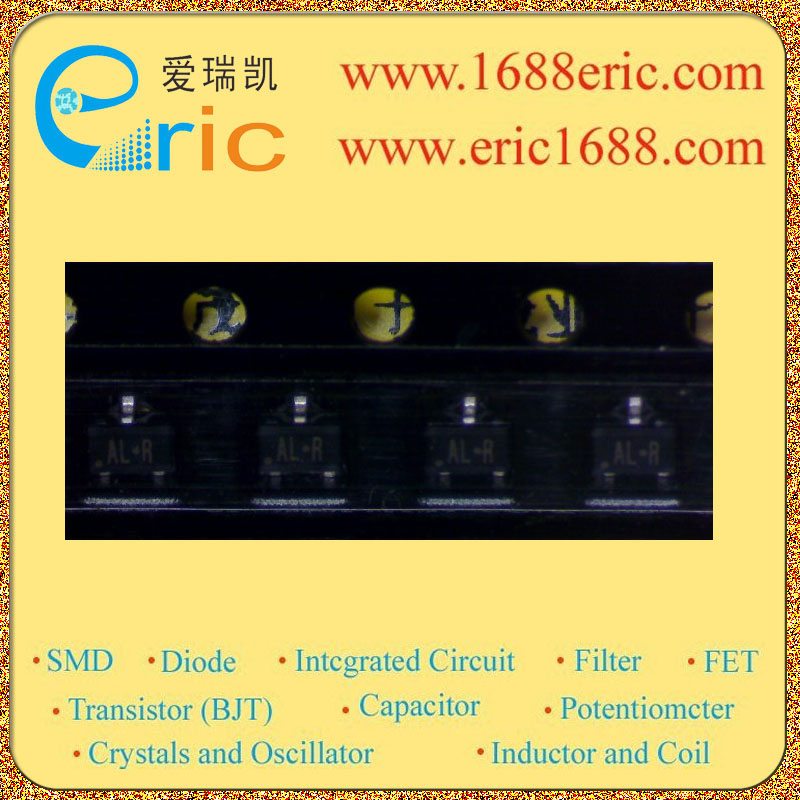

2sa1748 ALR 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?50V |
| 集电极连续输出电流IC
Collector Current(IC) |
-50mA |
| 截止频率fT
Transtion Frequency(fT) |
250MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
250~500 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
-100mV/-0.1V |
| 耗散功率Pc
PoWer Dissipation |
150mW/0.15W |
| Description & Applications |
Silicon PNP epitaxial planer type Features High transition frequency fT. Small collector output capacitance Cob. S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. |
| 描述与应用 |
硅PNP外延刨床类型 特点 高转换频率FT。 小集电极输出电容芯 |
