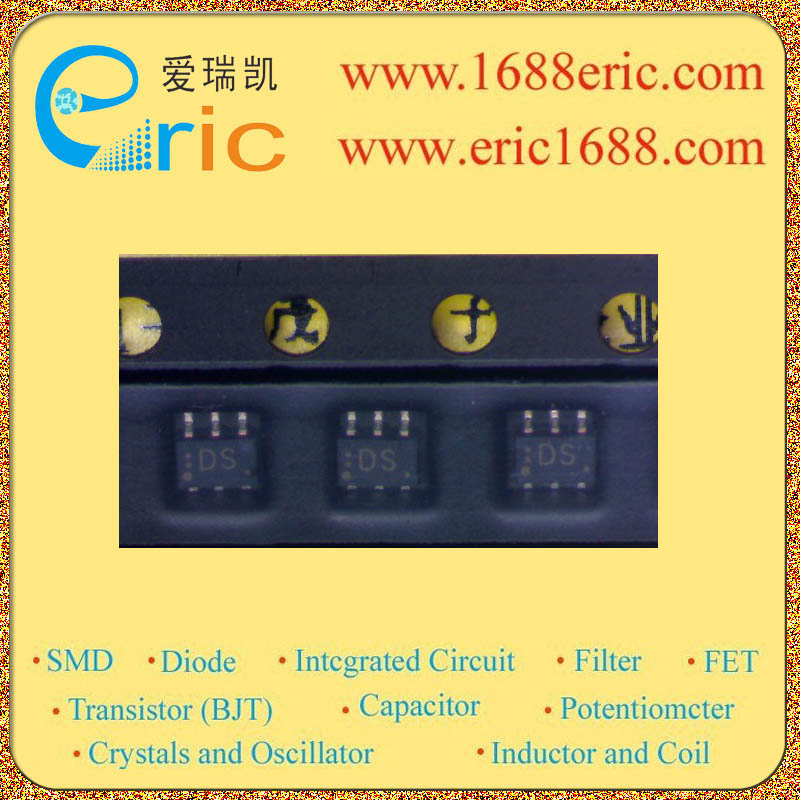

SSM6N16FU DS 的参数 |
最大源漏极电压Vds
Drain-Source Voltage |
20V |
最大栅源极电压Vgs(±)
Gate-Source Voltage |
10V |
最大漏极电流Id
Drain Current |
100mA/0.1A |
源漏极导通电阻Rds
Drain-Source On-State Resistance |
300m?@ VGS = 4V, ID = 10mA |
开启电压Vgs(th)
Gate-Source Threshold Voltage |
0.6~1.1V |
耗散功率Pd
Power Dissipation |
200mW/0.2W |
Description & Applications |
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type ●High Speed Switching Applications ●Analog Switch Applications ●Suitable for high-density mounting due to compact package ● Low on resistance : Ron = 3.0 Ω (max) (@VGS = 4 V) : Ron = 4.0 Ω (max) (@VGS = 2.5 V) : Ron = 15 Ω (max) (@VGS = 1.5 V) |
描述与应用 |
东芝场效应晶体管的硅N沟道MOS类型 ●高速开关应用 ●模拟开关应用 ●适用于高密度安装由于紧凑的封装 ●低导通电阻RON =3.0Ω(最大)(@ VGS=4 V) RON =4.0Ω(最大值)(@ VGS= 2.5 V) RON=15Ω(最大)(@ VGS=1.5 V) |
